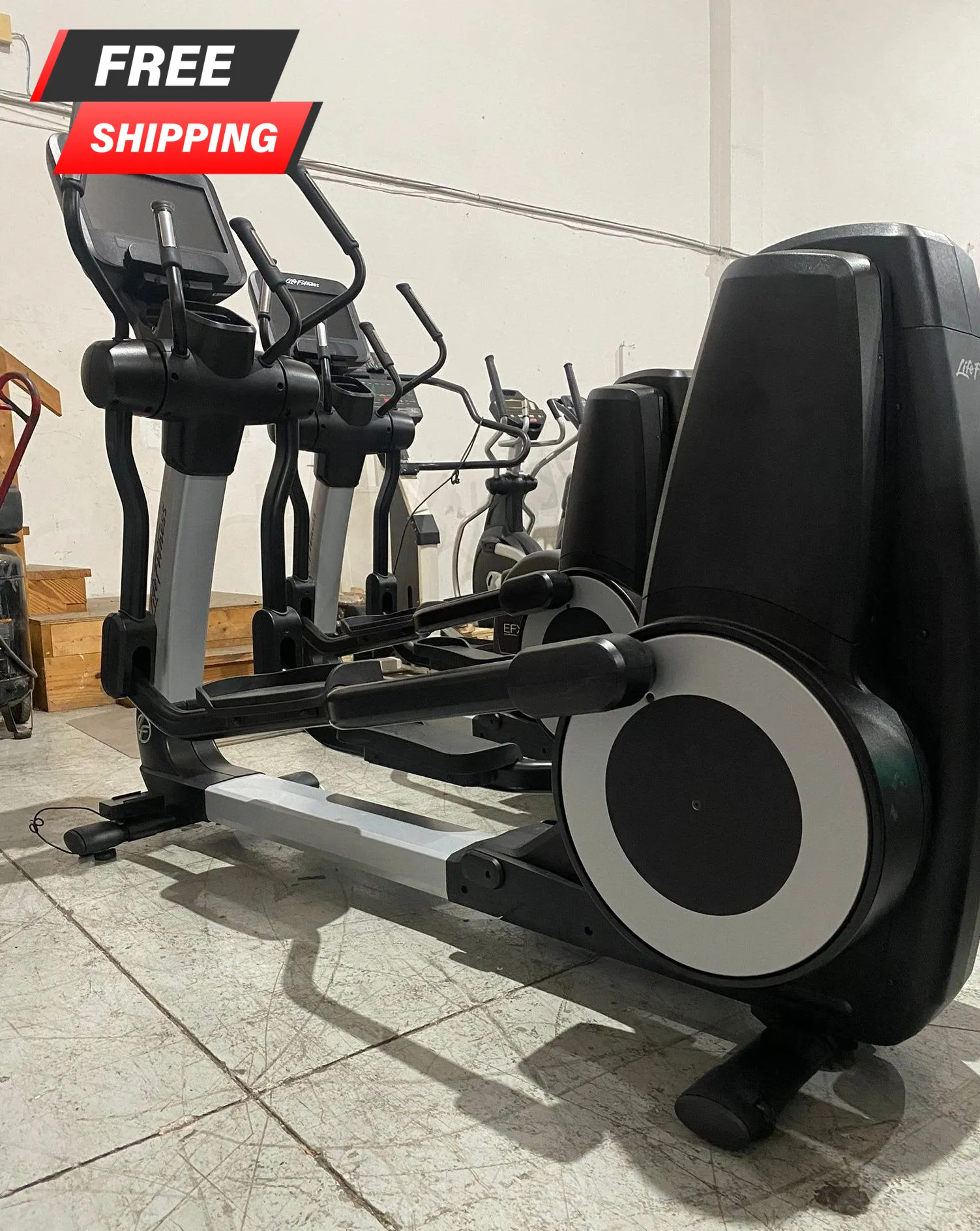

A premium elliptical cross-trainer that combines expert biomechanics, a natural-feeling motion and quiet operation. Extensive biomechanics research has created an elliptical workout where every stride feels smooth and comfortable. The result is an inviting, low-impact cardio option for a wide range of exercisers.
- The evolving technology employed by Elevation Series cross-trainers allows exercisers to benefit from fitness apps and wearables and maintain the level of digital connection they've come to expect.
- Wireless internet connection allows facilities to monitor valuable asset data and make easy console software updates.
- Console choices and four color options let you create the cardio experience that best fits your members.
TECHNICAL SPECIFICATIONS
| Description | Elevation Elliptical |

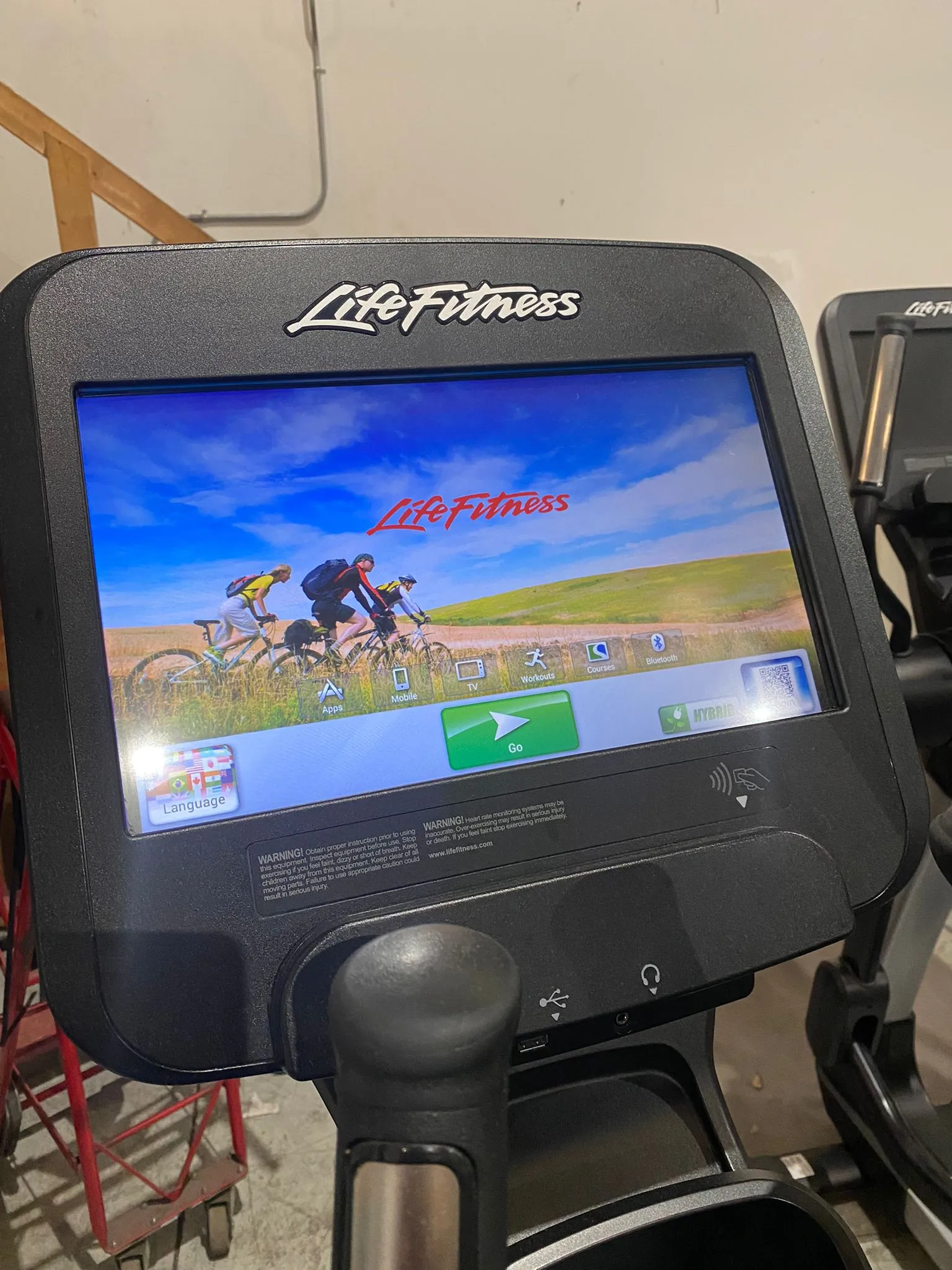

| Console | Discover SE3 HD, Discover ST |
| Dimensions (L" x W" x H") | 88.1" x 30.7" x 65" |
| Active Dimensions | - |
| Equipment Weight | 459 lb |
| Pedal Dimensions (inches) | 17 x 8 |
| Minimum Space between Foot Pedals (inches) | 3.5" |
| Step-Up Height (inches) | 11" |
| Max User Weight | 400 lb |
| Colors | Artic Silver, Diamond White, Black Onyx, Titanium Storm |
| Handlebars | Moving handlebars and central fixed hand grips with remote resistance controls |
| Stride Length (inches) | 20" |
| Ramp Angle | N/A |
| Resistance Levels | 25 (0 - 25) |
| Resistance System | Belt/Generator/Brake |
| Transport Wheels | No |
| USB Port | No |
| Water Bottle Holder/Accessory Tray | Integrated Accessory Tray w/ 1 cup holder & reading rack |
| Self-powered | No |
| Power Requirements | AC Power line 115 volt, 15 amp (voltage may vary outside U.S.) |
| Minimum Watts | - |
| Maximum Watts | - |
| Heart Rate | Yes |
| Touch | Lifepulse™ with DSP (Digital Signal Processing) |
| Telemetry | Yes |
| Shipping Weight | 540 lb (245kg) |
| Shipping Configurations (for non-installed purchases) | 87" x 33" x 54.25" (221 x 83.82 x 138cm) |
